Introduction
Controlling an LED using a switch is one of the most basic and important experiments in electronics. This project helps beginners understand how electrical circuits work and how a simple switch can control the flow of current.
In this blog post, you will learn how to turn an LED ON and OFF using a switch, required components, circuit working, common mistakes, and real-life applications. This project is perfect for students, beginners, and DIY electronics enthusiasts.

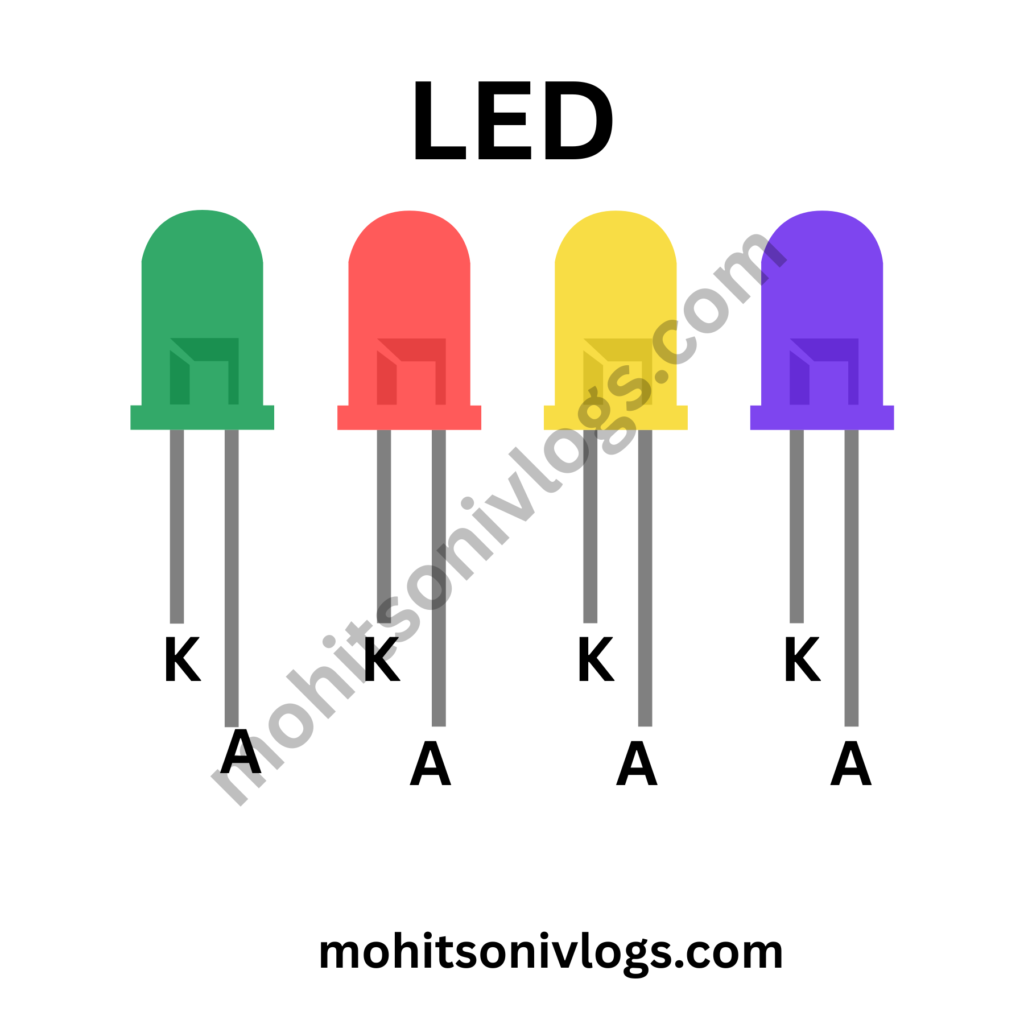

What Is LED?
LED stands for Light Emitting Diode. It is a semiconductor device that emits light when current flows through it in the forward direction. LEDs are widely used because they consume very low power and have a long lifespan.
What Is a Switch?
A switch is an electrical component used to open or close a circuit.
- When the switch is ON (closed) → current flows → LED glows
- When the switch is OFF (open) → current stops → LED turns off
Components Required
To build an LED ON/OFF circuit using a switch, you need:
- LED (any color)
- Push button switch or toggle switch
- Resistor (220Ω or 330Ω)
- Battery (9V or 5V supply)
- Breadboard
- Connecting wires

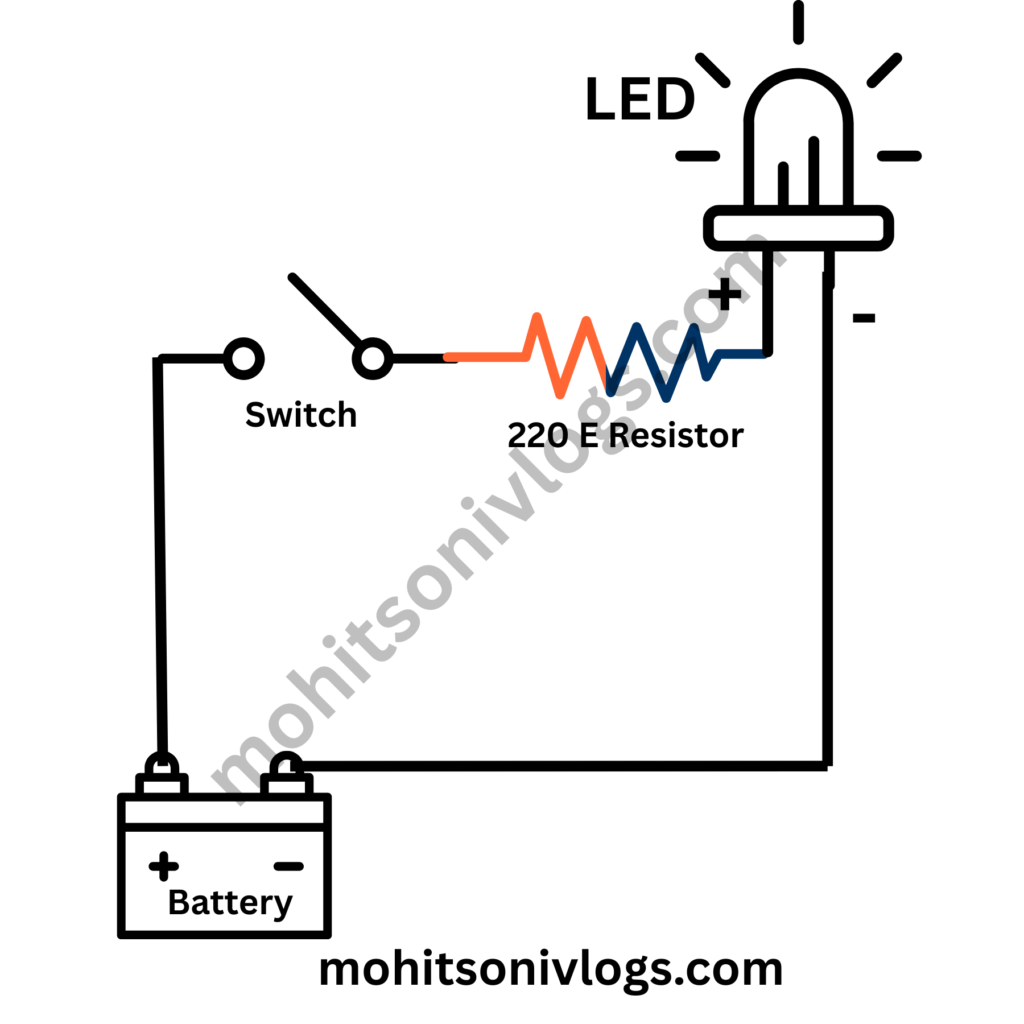

Circuit Diagram Description
The circuit is very simple:
- Positive terminal of the battery connects to the switch
- Switch connects to the resistor
- Resistor connects to the anode (long leg) of LED
- Cathode (short leg) of LED connects to battery negative
The resistor is important to limit current and protect the LED from damage.
Working of LED ON/OFF Using Switch
- When the switch is pressed or turned ON, the circuit is completed
- Current flows from the power supply through the resistor and LED
- LED lights up
When the switch is released or turned OFF:
- Circuit breaks
- No current flows
- LED turns OFF
This simple principle is used in almost all electrical and electronic switches.
Why Do We Use a Resistor with LED?
LEDs are very sensitive to current.
Without a resistor:
- LED may glow too brightly
- LED can get damaged permanently
A resistor controls the current and increases LED life.
Common Mistakes Beginners Make ⚠️
❌ Connecting LED without a resistor
❌ Reversing LED polarity
❌ Loose breadboard connections
❌ Using very high voltage directly
Applications of LED ON/OFF Circuit
This basic circuit is used in many real-life applications:
- Power indicator lights
- Electronic toys
- Control panels
- Learning and training kits
- DIY electronics projects
LED ON/OFF Using Switch for School Projects
This project is widely used in:
- School science exhibitions
- Diploma & ITI practicals
- Electronics lab experiments
It is easy to understand and demonstrates basic circuit concepts clearly.
Advantages of This Project
✔ Very simple and low cost
✔ Ideal for beginners
✔ Helps understand basic electronics
✔ Safe low-voltage operation
FAQs
Q1. Can I use any LED color?
Yes, you can use red, green, blue, or white LEDs.
Q2. Can I use this circuit without a breadboard?
Yes, you can solder the components on a PCB.
Q3. What happens if I don’t use a resistor?
The LED may burn due to excess current.
Conclusion
The LED ON/OFF using switch project is the foundation of electronics learning. It teaches how current flows, how switches work, and why resistors are important. Every beginner should start with this experiment before moving to advanced projects.
